CDM zinc wires are manufactured from special high grade zinc ingots (Zn 99.995% according to EN 1179 - "Z1")
Physical properties
Density: 7.14g/cm3
Melting point: 419°C
Chemical composition (according to ISO 14919:2001)
Pb | Cd | Sn | Cu | Fe | Zn |
max. 0.005% | max. 0.005% | max. 0.001% | max. 0.002% | max.0.003% | Rest |
Mechanical Characteristics
Tensile Strength : 100 N/mm2 (min)
Elongation at rupture : 40% (min)
Standard diameters: 1.45mm, 1.6 mm, 2.00 mm, 3.17 mm, 4.76mm or other diameters as per request according to EN ISO 14919:2001

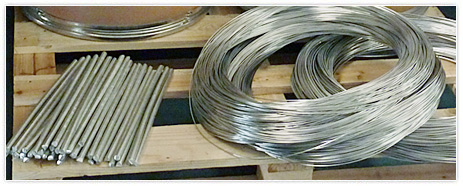

Zinc wires are available on spools, random mill coils, fibre drums or metal drums.
CDM Zinc wires have good electrical conductivity are perfectly suited for metallizing processes both arc and flame spray with remarkable adhesiveness. The clean and smooth surface of the wire gives high durability of nozzle.
Though the above list is our standard product range, we can provide customized products based on requirements. Our machines are flexible enough to cater to requirements which are not standard in nature.
Iron and Steel corrode naturally in almost any environment. Arc and flame spraying of Zinc is used to protect iron and steel of almost any size and shape.
